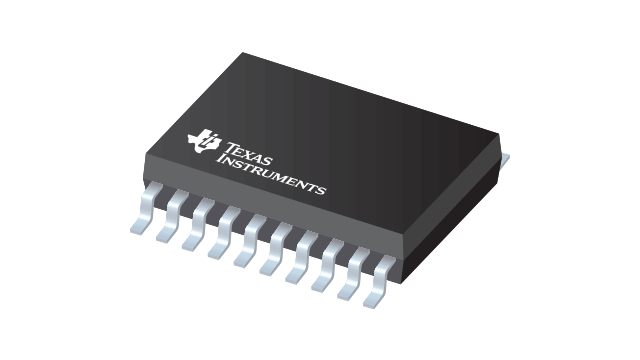

TI 德州儀器電流感應放大器模擬輸出
發布時間：2021-03-15 17:14:22 瀏覽：909
TI 德州儀器電流感測放大器采用獨特的前端結構，使放大器的輸入電壓超過電源電壓，并帶有集成電阻，提高了精度和穩定性。
應用領域
汽車
通訊設備
企業系統
工業應用
個人電子產品
深圳市立維創展科技有限公司，專注于TI 德州儀器品牌高端可出口產品系列新品產品，并備有現貨庫存，可當天發貨。
詳情了解TI德州儀器請點擊：/brand/57.html
或聯系我們的銷售工程師： 0755- 83642657 QQ ： 2295048674
*詳情了解更多型號請聯系我們的銷售工程師。
Part number | Common mode voltage
(Min)
(V) | Number of channels
(#) | Input offset (+/-)
(Max)
(uV) | Gain error
(%) | Common mode voltage
(Max)
(V) | Input offset drift (+/-)
(Typ)
(uV/C) | Gain
(V/V) | Gain error drift (+/-)
(Max)
(ppm/°C) | CMRR
(Min)
(dB) | Bandwidth
(kHz) | Supply voltage
(Max)
(V) | Supply voltage
(Min)
(V) | Iq
(Max)
(mA) | Comparators
(#) |
INA183 | 2.7 | 1 | 150 | 0.4 | 26 | 0.5 | 100,
200,
50 | 10 | 100 | 80 | 26 | 2.7 | 0.13 | 0 |
INA2191 | -0.2 | 2 | 12 | 0.3 | 40 | 0.01 | 100,
200,
25,
50,
500 | 7 | 120 | 45,37,35,32,27 | 5.5 | 1.7 | 0.09 | 0 |
INA2290 | 2.7 | 2 | 12 | 0.15 | 120 | 0.2 | 100,
20,
200,
50,
500 | 5 | 140 | 1100 | 20 | 2.7 | 1.2 | 0 |
INA280-Q1 | 2.7 | 1 | 150 | 0.5 | 120 | 1 | 100,
20,
200,
50,
500 | 20 | 120 | 1100 | 20 | 2.7 | 0.6 | 0 |
INA290-Q1 | 2.7 | 1 | 12 | 0.15 | 120 | 0.2 | 100,
20,
200,
50,
500 | 5 | 140 | 1100 | 20 | 2.7 | 0.6 | 0 |
INA281-Q1 | -4 | 1 | 150 | 0.5 | 110 | 0.07 | 100,
20,
200,
50,
500 | 20 | 120 | 1300 | 20 | 2.7 | 2.25 | 0 |
INA293-Q1 | -4 | 1 | 20 | 0.15 | 110 | 0.025 | 100,
20,
200,
50,
500 | 10 | 140 | 1300 | 20 | 2.7 | 2.25 | 0 |
INA280 | 2.7 | 1 | 150 | 0.5 | 120 | 1 | 100,
20,
200,
50,
500 | 20 | 120 | 1100 | 20 | 2.7 | 0.6 | 0 |
INA281 | -4 | 1 | 150 | 0.5 | 110 | 0.07 | 100,
20,
200,
50,
500 | 20 | 120 | 1300 | 20 | 2.7 | 2.25 | 0 |
INA290 | 2.7 | 1 | 12 | 0.15 | 120 | 0.2 | 100,
20,
200,
50,
500 | 5 | 140 | 1100 | 20 | 2.7 | 0.6 | 0 |
INA381-Q1 | -0.2 | 1 | 150 | 1 | 26 | 0.2 | 100,
20,
200,
50 | 20 | 84 | 350,
210,
150,
105 | 5.5 | 2.7 | 0.5 | 1 |
INA293 | -4 | 1 | 20 | 0.15 | 110 | 0.025 | 100,
20,
200,
50,
500 | 10 | 140 | 1300 | 20 | 2.7 | 2.25 | 0 |
INA253-Q1 | -4 | 1 | 12.5mA | 0.4 | 80 | 125uA/C | 100mV/A,
200mV/A,
400mV/A | 45 | 120 | 350 | 5.5 | 2.7 | 2.6 | 0 |
INA186-Q1 | -0.2 | 1 | 50 | 0.9 | 40 | 0.05 | 100,
200,
25,
50,
500 | 10 | 120 | 45,
37,
35,
32,
27 | 5.5 | 1.7 | 0.09 | 0 |
INA190-Q1 | -0.2 | 1 | 15 | 0.2,
0.3,
0.4 | 40 | 0.01 | 100,
200,
25,
50,
500 | 7 | 132 | 45,
37,
35,
32,
27 | 5.5 | 1.7 | 0.09 | 0 |
INA303-Q1 | 0 | 1 | 30,
50,
80 | 0.1,
0.15,
0.2 | 36 | 0.1 | 100,
20,
50 | 10 | 100 | 550,
500,
450 | 5.5 | 2.7 | 1.1 | 2 |
INA302-Q1 | 0 | 1 | 30,
50,
80 | 0.1,
0.15,
0.2 | 36 | 0.1 | 100,
20,
50 | 10 | 100 | 550,
440,
400 | 5.5 | 2.7 | 1.1 | 2 |
INA186 | -0.2 | 1 | 50 | 0.9 | 40 | 0.05 | 100,
200,
25,
50,
500 | 10 | 120 | 45,
37,
35,
32,
27 | 5.5 | 1.7 | 0.09 | 0 |
INA191 | -0.2 | 1 | 12 | 0.3 | 40 | 0.01 | 100,
200,
25,
50,
500 | 7 | 120 | 45,
37,
35,
32,
27 | 5.5 | 1.7 | 0.09 | 0 |
INA181-Q1 | -0.2 | 1 | 150 | 1 | 26 | 0.2 | 100,
20,
200,
50 | 20 | 84 | 350,
210,
150,
105 | 5.5 | 2.7 | 0.3 | 0 |
INA185 | -0.2 | 1 | 55 | 0.2 | 26 | 0.2 | 100,
20,
200,
50 | 8 | 96 | 350,
210,
150,
105 | 5.5 | 2.7 | 0.3 | 0 |
INA180-Q1 | -0.2 | 1 | 150 | 1 | 26 | 0.2 | 100,
20,
200,
50 | 20 | 84 | 350,
210,
150,
105 | 5.5 | 2.7 | 0.3 | 0 |
INA901-SP | -15 | 1 | 2500 | 1 | 65 | 2.5 | 20 | 50 | 100 | 130 | 16 | 2.7 | 0.9 | 0 |
INA240-SEP | -4 | 1 | 25 | 0.2 | 80 | 0.05 | 20 | 10 | 120 | 400 | 5.5 | 2.7 | 2.6 | 0 |
INA253 | -4 | 1 | 12.5mA | 0.4 | 80 | 125uA/C | 100mV/A,
200mV/A,
400mV/A | 45 | 120 | 350 | 5.5 | 2.7 | 2.6 | 0 |
INA190 | -0.2 | 1 | 15 | 0.2,
0.3,
0.4 | 40 | 0.01 | 100,
200,
25,
50,
500 | 7 | 132 | 45,
37,
35,
32,
27 | 5.5 | 1.7 | 0.09 | 0 |
INA4180-Q1 | -0.2 | 4 | 150 | 1 | 26 | 0.2 | 100,
20,
200,
50 | 20 | 84 | 350,
210,
150,
105 | 5.5 | 2.7 | 1 | 0 |
INA4181-Q1 | -0.2 | 4 | 150 | 1 | 26 | 0.2 | 100,
20,
200,
50 | 20 | 84 | 350,
210,
150,
105 | 5.5 | 2.7 | 1 | 0 |
INA2181-Q1 | -0.2 | 2 | 150 | 1 | 26 | 0.2 | 100,
20,
200,
50 | 20 | 84 | 350,
210,
150,
105 | 5.5 | 2.7 | 0.5 | 0 |
INA2180-Q1 | -0.2 | 2 | 150 | 1 | 26 | 0.2 | 100,
20,
200,
50 | 20 | 84 | 350,
210,
150,
105 | 5.5 | 2.7 | 0.5 | 0 |
INA4181 | -0.2 | 4 | 150 | 1 | 26 | 0.2 | 100,
20,
200,
50 | 20 | 84 | 350,
210,
150,
105 | 5.5 | 2.7 | 1 | 0 |
INA4180 | -0.2 | 4 | 150 | 1 | 26 | 0.2 | 100,
20,
200,
50 | 20 | 84 | 350,
210,
150,
105 | 5.5 | 2.7 | 1 | 0 |
INA381 | -0.2 | 1 | 150 | 1 | 26 | 0.2 | 100,
20,
200,
50 | 20 | 84 | 350,
210,
150,
105 | 5.5 | 2.7 | 0.5 | 1 |
INA2180 | -0.2 | 2 | 150 | 1 | 26 | 0.2 | 100,
20,
200,
50 | 20 | 84 | 350,
210,
150,
105 | 5.5 | 2.7 | 0.5 | 0 |
INA2181 | -0.2 | 2 | 150 | 1 | 26 | 0.2 | 100,
20,
200,
50 | 20 | 84 | 350,
210,
150,
105 | 5.5 | 2.7 | 0.5 | 0 |
INA240-Q1 | -4 | 1 | 25 | 0.2 | 80 | 0.05 | 100,
20,
200,
50 | 2.5 | 120 | 400 | 5.5 | 2.7 | 2.6 | 0 |
INA302 | 0 | 1 | 30,
50,
80 | 0.1,
0.15,
0.2 | 36 | 0.1 | 100,
20,
50 | 10 | 100 | 550,
440,
400 | 5.5 | 2.7 | 1.1 | 2 |
