產(chǎn)品詳情

SR & SS系列寬帶射頻變壓器

選型：

Vanguard P/N SR SERIES	Vanguard P/N SS SERIES	Impedance Ratio Pri:Sec	Primary Center Tap	Secondary Center Tap	nsertion Loss @50 MHz max (dB)	VSWR @50 MHz max	Bandwidth min (MHz)		Schematic
Vanguard P/N SR SERIES	Vanguard P/N SS SERIES	Impedance Ratio Pri:Sec	Primary Center Tap	Secondary Center Tap	nsertion Loss @50 MHz max (dB)	VSWR @50 MHz max	0.5 dB 3 dB (Ripple) Points		Schematic
SRUB55D	SSUB55D	1:1	No	Yes	1.0	1.35	6.0-120	1.5-360	A
SRUB1010D		1:1	No	Yes	1.3	1.7	12-35	3-125	A
	SSUB1010D	1:1	No	Yes	0.8	1.35	6-120	1.5-360	A
SRUB57D	SSUB57D	1:1.5	No	Yes	1.6	1.80	7.0-80	4.0-180	A
SRUB510D	SSUB510D	1:2	No	Yes	1.0	1.27	12-85	1.2-200	A
SRUB1020D	SSUB1020D	1:2	No	Yes	1.2	1.4	12-85	1.2-200	A
SRUB520D	SSUB520D	1:4	No	Yes	1.0	1.30	7.0-130	0.9-270	A
SRUB545D	SSUB545D	1:9	No	Yes	2.0**			6-100	A
SRUB580D	SSUB580D	1:16	No	Yes	1.3*	2.0*	14-30	3.0-125	A
SRUU55D	SSUU55D	1:1	No	No	1.0	1.35	8.0-90	1.5-300	B
SRUU57D	SSUU57D	1:15	No	No	1.5	1.80	9.0-60	6.0-130	B
SRUU510D	SSUU510D	1:2	No	No	1.4	1.50	15-80	1.5-250	B
SRUU520	SSUU520	1:4	No	No	1.2	1.35	8.0-125	1.3-210	B
SRUU580D	SSUU580D	1:16	No	No	1.3*	2.0*	16-25	3.0-100	B
SRBB55D	SSBB55D	1:1	Ves	Yes	1.0	1.35	6.0-120	1.5-360	C
SRBB57D	SSBB57D	1:1.5	Yes	Yes	1.6	1.80	7.0-80	4.0-180	C
SRBB1020D	SSBB1020D	1:2	Yes	Yes	1.2	1.4	12-85	1.2-200	C
SRBB520D	SSBB520D	1:4	Yes	Yes	1.0	1.30	7.0-130	0.9-270	C
SRBB545D	SSBB545D	1:9	Yes	Yes	2.0**			6-100	C
SRBB580D	SSBB580D	1:16	Yes	Yes	1.3*	2.0*	14-30	3.0-125	C
SRBU55D	SSUU55D	1:1	Yes	No	1.0	1.35	8.0-90	1.5-300	D
SRBU57D	SSUU57D	1:1.5	Yes	No	1.5	1.80	9.0-60	6.0-130	D
SRBU1020D	SSBU1020D	1:2	Yes	No	1.2	1.4	12-85	1.2-200	D
SRBU510D	SSUU510D	1:2	Yes	No	1.4	1.50	15-80	1.5-250	D
SRBU520	SSUU520	1:4	Yes	No	1.2	1.35	8.0-125	1.3-210	D
SRUB545D	SSUB545D	1:9	Yes	No	2.0**			6-100	D
SRBU580D	SSUU580D	1:16	Yes	No	1.3*	2.0*	16-25	3.0-100	D

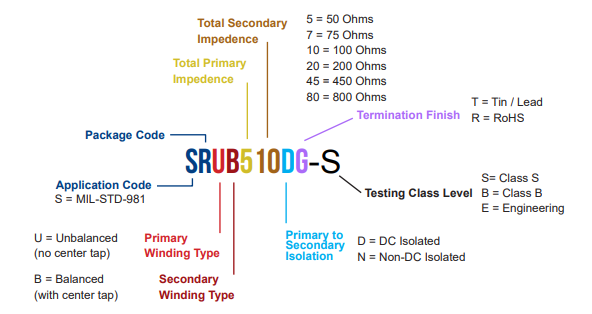

訂購指南：
